TIEBitmap.AlphaChannel

Declaration

property AlphaChannel: TIEBitmap;

Description

Returns the associated Alpha Channel of the image
Natively TIEBitmap handles the alpha channel as an encapsulated TIEBitmap object with PixelFormat of ie8g. Pixels that are 0 (black) will be fully transparent, pixels of 255 are fully opaque, and values from 1 - 254 are partially transparent.
If an image doesn't have an alpha channel, accessing the AlphaChannel property will create it.
To determine whether an image has an alpha channel and/or contains transparent regions, check HasAlphaChannel.



Note:
◼The AlphaChannel must have a PixelFormat of ie8g, and be the same width and height as the owner TIEBitmap. If it is not, ImageEn will need to dynamically scale the channel, which will reduce performance. You can use SyncAlphaChannel to automatically check and fix this if you modify the alpha channel
◼AlphaChannel is a standard TIEBitmap, so you can use all TIEBitmap methods, such as Negative to invert the transparency
◼If you make changes to the AlphaChannel of a bitmap displayed by TImageEnView, you must call Update to refresh the display
◼Remember that in the alpha channel, black is transparency, white is opacity (Imagine a night sky where the things in darkness/black are hidden, whereas those things in white/illumination are visible)
◼To use the "A" channel of a 32bit RGBA image, set AlphaLocation to iaRGBA. Accessing the AlphaChannel will set AlphaLocation to iaAlphaChannel
◼If AutoOptimizeOnSave is enabled, the non-visible content of the image will be removed when saving

File Formats and Alpha

In order to maintain the alpha channel when saving, you will need to choose a format that supports it. The most widely used image format with true alpha support is PNG.

Alpha Channel is supported by:
◼BMP
◼CUR
◼ICO
◼IEN
◼JPEG 2000 with certain formats such as ioJ2000_RGB
◼GIF, if GIF_FlagTranspColor is enabled
◼PNG
◼PSD
◼SVG
◼TGA
◼TIFF (supported by some formats)
◼WIC formats, such as HDP, WDP, HEIF, etc.
◼WMF/EMF Metafiles (if EMFBackgroundColor = clNone)

It is not supported by: AVI, Camera RAW, DCX, DICOM, JPEG, PCX

Demos

Example

// Assign an alpha channel to an image using a source file
// For simple transparency, use a monochrome bitmap where the black pixels will become transparent
// Otherwise, a 256 color gray-scale image can provide a range of tranparency values (from white/fully opaque to black/fully transparent)
aBMP := TIEBitmap.create( 'D:\alpha.bmp' );

// Use our bitmap as the alpha channel
ImageEnView1.IEBitmap.AlphaChannel.Assign( aBMP );

// Ensure size of alpha channel matches size of image (and is ie8g)
ImageEnView1.IEBitmap.SyncAlphaChannel();

// Update the container
ImageEnView1.Update();

aBMP.Free();

Source Image

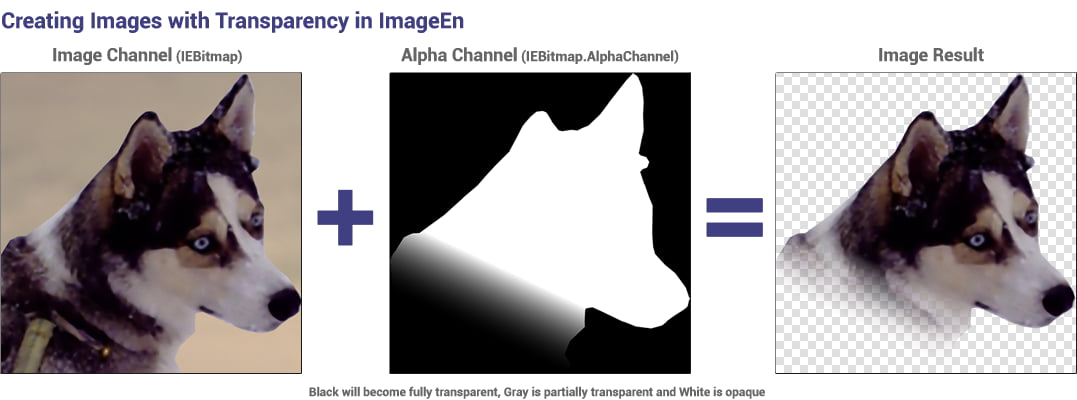

Alpha Image (Black will become transparent, gray will be 50% transparent and white will be fully opaque)




Result (on a white TImageEnView)

Example 2

// Feather the border of a JPEG image
iebmp.LoadFromFile( 'D:\image.jpg' );
iebmp.AlphaChannel; // Add alpha channel to image
iebmp.Resize(1, 1, 1, 1, clWhite, 0); // Add an alpha border
iebmp.FeatherAlphaEdges(10);

Example 3

// Create a shaped image, by drawing a letter to the canvas of the Alpha channel
ImageEnView1.IO.LoadFromFile( 'D:\Testing_Multimedia\Sub-100KB\Sunset 2.jpg' );
ImageEnView1.IEBitmap.AlphaChannel.Fill( clBlack );
ImageEnView1.IEBitmap.AlphaChannel.IECanvas.Font.Height := ImageEnView1.IEBitmap.Height;
ImageEnView1.IEBitmap.AlphaChannel.IECanvas.Font.Style  := [fsBold];
ImageEnView1.IEBitmap.AlphaChannel.IECanvas.Font.Color  := clWhite;
ImageEnView1.IEBitmap.AlphaChannel.IECanvas.DrawText( 'Q', Rect( 0, 0, ImageEnView1.IEBitmap.Width, ImageEnView1.IEBitmap.Height ), iejCenter );
ImageEnView1.Update();

Example 4

// Create a shaped image, by drawing to the alpha channel
var aBmp := TIEBitmap.Create();

// Load our image content
aBmp.LoadFromFile( 'D:\fish.jpg' );

// Draw a shape to the alpha channel
aBmp.AlphaChannel.Fill( clBlack );
aBmp.AlphaChannel.FillWithShape( iesRadiance, -1, -1, clNone, 0, clWhite, False, True );
aBmp.SyncAlphaChannel(); // Fix the alpha channel

ImageEnView1.LayersAdd( aBmp ); // Do something with our image...

aBmp.Free();

Example 5

// Show the percentage of pixels that are partially or fully transparent
// Same as TImageEnProc.CalcImageNumColors()
var
  px: pbyte;
  y, x, l: integer;
  alphaCount, denom: Integer;
  bmp: TIEBitmap;
begin
  bmp := ImageEnView1.IEBitmap;

  alphaCount := 0;
  if bmp.HasAlphaChannel() then
  begin
    l := IEBitmapRowLen( bmp.AlphaChannel.Width, bmp.AlphaChannel.BitCount, 8);
    for y := 0 to bmp.AlphaChannel.Height - 1 do
    begin
      px := bmp.AlphaChannel.Scanline[y];
      for x := 0 to l - 1 do
      begin
        if px^ < 255 then
          Inc( alphaCount );
        inc(px);
      end;
    end;
  end;

  denom := bmp.Width * bmp.Height;
  ShowMessage( format( 'Image has %d%% transparent pixels', [ Round( alphaCount / denom * 100 )]));
end;

See Also

◼Alpha
◼AlphaLocation
◼SyncAlphaChannel
◼DetachAlphaChannel
◼ReplaceAlphaChannel

---
