ImageEn, unit ievision

TIEVisionImage.houghLinesP

TIEVisionImage.houghLinesP


Declaration

function houghLinesP(rho: double; theta: double; threshold: int32_t; minLineLength: double = 0; maxLineGap: double = 0): TIEVisionVectorScalarInt32; safecall;


Description

Find line segments in a binary image using the probabilistic Hough transform.
Returns a vector (list) of line segments. Each line is represented by a 4-element vector (x1, y1, x2, y2), where (x1, y1) and (x2, y2) are the ending points of each detected line segment.



Note:
Pixel format of input image must be ie8g
You can draw the lines to a canvas using DrawLines
For a standard Hough transform, use houghLines

Parameter Description
rho Distance resolution of the accumulator in pixels
theta Angle resolution of the accumulator in radians
threshold Accumulator threshold parameter. Only those lines are returned that get enough votes
minLineLength Minimum line length. Line segments shorter than that are rejected
maxLineGap Maximum allowed gap between points on the same line to link them

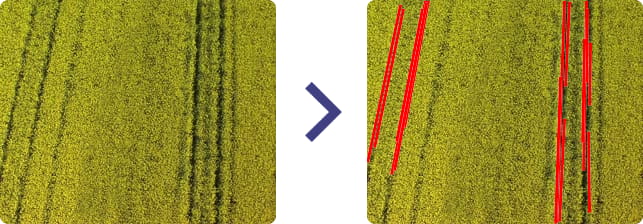

Comparison of Line Detection Methods

// HOUGH TRANSFORM
ImageEnView1.IEBitmap.PixelFormat := ie8g;
ImageEnView1.IEBitmap.GetIEVisionImage().blur( IEVisionSize(3, 3), IEVisionPoint(-1, -1) );
ImageEnView1.IEBitmap.GetIEVisionImage().canny( 50, 200, 3 );
lines := ImageEnView1.IEBitmap.GetIEVisionImage().houghLinesP( 1, PI / 180, 200, 100, 10 );
for i := 0 to lines.size() - 1 do
begin
  sc := lines.getScalarInt32(i);

  with ImageEnView1.IEBitmap.Canvas do
  begin
    Pen.Width := 2;
    Pen.Color := clRed;
    MoveTo( sc.val[0], sc.val[1] );
    LineTo( sc.val[2], sc.val[3] );
  end;
end;
ImageEnView1.Proc.TextOut( Align_Text_Near_Left, Align_Text_Near_Top, Format( 'Lines: %d', [ lines.size ]), 'Arial', 12, Text_Color, [fsBold] );
ImageEnView1.Update();




// BINARY DESCRIPTOR
lines := ImageEnView1.IEBitmap.GetIEVisionImage().detectLines( ievBinaryDescriptor );
for i := 0 to lines.size() - 1 do
begin
  sc := lines.getScalarInt32(i);

  with ImageEnView1.IEBitmap.Canvas do
  begin
    Pen.Width := 2;
    Pen.Color := clRed;
    MoveTo( sc.val[0], sc.val[1] );
    LineTo( sc.val[2], sc.val[3] );
  end;
end;
ImageEnView1.Proc.TextOut( Align_Text_Near_Left, Align_Text_Near_Top, Format( 'Lines: %d', [ lines.size ]), 'Arial', 12, Text_Color, [fsBold] );
ImageEnView1.Update();




// LSD DETECTOR
lines := ImageEnView1.IEBitmap.GetIEVisionImage().detectLines( ievLSDDetector );
for i := 0 to lines.size() - 1 do
begin
  sc := lines.getScalarInt32(i);

  with ImageEnView1.IEBitmap.Canvas do
  begin
    Pen.Width := 2;
    Pen.Color := clRed;
    MoveTo( sc.val[0], sc.val[1] );
    LineTo( sc.val[2], sc.val[3] );
  end;
end;
ImageEnView1.Proc.TextOut( Align_Text_Near_Left, Align_Text_Near_Top, Format( 'Lines: %d', [ lines.size ]), 'Arial', 12, Text_Color, [fsBold] );
ImageEnView1.Update();
