ImageEn, unit imageenproc

TImageEnProc.TextOutEx

TImageEnProc.TextOutEx


Declaration

// Full Overload
function TextOutEx(X, Y, W, H : Integer;
                   const Text: WideString;
                   Font: TFont;
                   TextAngle: Integer = 0;
                   TextAlign: TIEAlignment = iejLeft;
                   TextLayout: TIELayout = ielTop;

                   // Advanced Styling
                   TextBorderWidth: Integer = 0;
                   TextBorderColor: TColor = clBlack;
                   TextFillTransparency1: Integer = 255;
                   TextFillTransparency2: Integer = 255;
                   TextFillColor2: TColor = clRed;
                   TextFillGradient: TIEGDIPlusGradient = gpgNone;

                   // Background Shape
                   FrameShape: TIEShape = iesRectangle;
                   FrameWidth: Integer = 0;
                   FrameBorderColor: TColor = clBlack;
                   FrameFillColor: TColor = clNone;
                   FrameFillColor2: TColor = clRed;
                   FrameFillGradient: TIEGDIPlusGradient = gpgNone;
                   FrameMargin: Double = 0.50;
                   TextVertOffset: Double = 0;

                   // Other parameters
                   WordWrap: Boolean = False;
                   AutoShrink: boolean = False;
                   AntiAlias: Boolean = True;
                   CalculateOnly: Boolean = False
                   ): TSize; overload;

// Advanced text styling overload
function TextOutEx(X, Y, W, H : Integer;
                   const Text: WideString;
                   Font: TFont;
                   TextAngle: Integer;
                   TextAlign: TIEAlignment;
                   TextLayout: TIELayout;

                   // Advanced Styling
                   TextBorderWidth: Integer;
                   TextBorderColor: TColor;
                   TextFillTransparency1: Integer;
                   TextFillTransparency2: Integer;
                   TextFillColor2: TColor;
                   TextFillGradient: TIEGDIPlusGradient;

                   // Other parameters
                   WordWrap: Boolean;
                   AutoShrink: boolean = False;
                   AntiAlias: Boolean = True;
                   CalculateOnly: Boolean = False
                   ): TSize; overload;

// Background shape overload
function TextOutEx(X, Y, W, H : Integer;
                   const Text: WideString;
                   Font: TFont;
                   TextAngle: Integer;
                   TextAlign: TIEAlignment;
                   TextLayout: TIELayout;

                   // Background Shape
                   FrameShape: TIEShape;
                   FrameWidth: Integer = 0;
                   FrameBorderColor: TColor = clBlack;
                   FrameFillColor: TColor = clNone;
                   FrameFillColor2: TColor = clRed;
                   FrameFillGradient: TIEGDIPlusGradient = gpgNone;
                   FrameMargin: Double = 0.50;
                   TextVertOffset: Double = 0;

                   // Other parameters
                   WordWrap: Boolean = False;
                   AutoShrink: boolean = False;
                   AntiAlias: Boolean = True;
                   CalculateOnly: Boolean = False
                   ): TSize; overload;


Description

Draw text at a specified position with advanced options, including:
Outlined text (text has a border and optional fill)
Background frame of many shapes and gradients
Auto-shrinking of wide text

For a simpler method, use: TextOut. Also see: AdvancedDrawText



Text Properties
Parameter Description
X Horizontal position. Either a pixel value or one of the following constants: Align_Text_Left, Align_Text_Near_Left, Align_Text_Horz_Center, Align_Text_Near_Right or Align_Text_Right
Y Vertical position. Either a pixel value or one or one of the following constants: Align_Text_Top, Align_Text_Near_Top, Align_Text_Vert_Center, Align_Text_Near_Bottom or Align_Text_Bottom
W The maximum width for the text output. This will enforce text wrapping and auto-shrinking, and also specify the bounds for the TextAlign property
H The maximum height for the text output. This will enforce auto-shrinking, and also specify the bounds for the TextLayout property
Text The string to output
Font The font for the text (you might want to create a temporary TFont object, or use ImageEnView1.IEBitmap.Canvas.Font )
TextAngle The rotation of the text in in degrees counter-clockwise, e.g. -45 will draws text diagonally downwards
TextAlign The horizontal alignment of the text within the rect of the specified width. Specify iejLeft to position at X *
TextLayout The vertical alignment of the text within the rect of the specified height. Specify ielTop to position at Y *

Advanced Text Styling
Parameter Description
TextBorderWidth If not 0 the text will have a colored border of the specified width
TextBorderColor The color of the text border
TextFillTransparency1 The transparency of the text fill (the color is specified by Font.Color)
TextFillTransparency2 The transparency of the secondary fill (if the text fill has a gradient)
TextFillColor2 The color of the secondary fill (if the text fill has a gradient). The fill color is specified by Font.Color. gpgNone specifies no gradient
TextFillGradient The direction of the gradient for the text fill (from Font.Color to TextFillColor2)

Text Background Frame
Parameter Description
FrameShape The shape of frame
FrameWidth If not 0 then there will be a shape drawn behind the text of the specified width
FrameBorderColor The color of the frame border (or clNone for no border)
FrameFillColor The color of the frame fill (or clNone for no fill)
FrameFillColor2 The color of the secondary fill (if the frame fill has a gradient)
FrameFillGradient The direction of the gradient for the frame fill (from FrameFillColor to FrameFillColor2). gpgNone specifies no gradient
FrameMargin Specifies the amount to increase the size of the shape (if width and height are auto-calculated) so the border does not overlap the text. This value is a percentage, e.g. 0.50 adds margins of 50% of the text width and height
TextVertOffset Shifts the drawing of text up or down. This is a percentage value with positive and negative values, so -0.10, moves the text up 10% of the layer height. 0.50 will shift halfway down. direction of the gradient for the frame fill (from FrameFillColor to FrameFillColor2). gpgNone specifies no gradient

Other Parameters
Parameter Description
WordWrap If true, and the text is wider than the W value, it will wrap onto the next line *
AutoShrink If True, and the text is larger than the rect specified by W x H, the font size will be reduced until it fits *
AntiAlias True uses best quality font. False uses an anti-aliased one
CalculateOnly If true, the text is not drawn, just the output size returned as the result
* These parameters have no effect unless the W and H values have been specifically set (i.e. are not 0)

Result is the size of the text in pixels.


Demo

Demo  Demos\ImageEditing\DrawText\DrawText.dpr


Examples

aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 14;
aFont.Style := [fsBold];
ImageEnView1.Proc.TextOutEx( 100, 100, 250, 100,
                             'EXPLOSION!', aFont,
                             0, iejCenter, ielCenter,
                             iesExplosion, 1, clBlack,
                             clRed, clYellow, gpgVertCenter );
aFont.Free;




aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 22;
aFont.Style := [fsBold];
ImageEnView1.Proc.TextOutEx( 100, 100, 230, 200,
                             'I Heart Delphi', aFont,
                             0, iejCenter, ielCenter,
                             iesHeart, 0, clNone, $004646FF,
                             clRed, gpgNone, -0.15 );
aFont.Free;

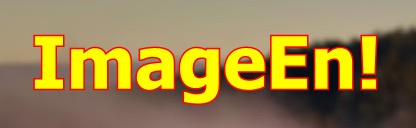

// Yellow text with red border
aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 54;
aFont.Style := [fsBold];
aFont.Color := clYellow;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
                             'ImageEn!', aFont,
                             0, iejLeft, ielTop,
                             3, clRed, 255, 255, clBlack, gpgNone );
aFont.Free;

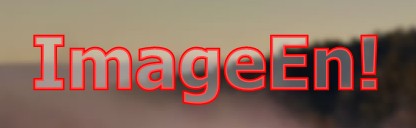

// Semi-transparent white text with red border
aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 54;
aFont.Style := [fsBold];
aFont.Color := clYellow;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
                             'ImageEn!', aFont,
                             0, iejLeft, ielTop,
                             3, clRed,
                             IEOpacityToAlpha( 30 ), // 30% opaque
                             255, clBlack, gpgNone );
aFont.Free;




// Transparent text with yellow border
aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 54;
aFont.Style := [fsBold];
aFont.Color := clYellow;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
                             'ImageEn!', aFont,
                             0, iejLeft, ielTop,
                             3, clYellow,
                             0,  // 100% transparent
                             255, clBlack, gpgNone );
aFont.Free;




// Gradient text with border
aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 54;
aFont.Style := [fsBold];
aFont.Color := clRed;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
                             'ImageEn!', aFont,
                             0, iejLeft, ielTop,
                             3, clBlack,
                             255, 255, clYellow, gpgVertical );
aFont.Free;

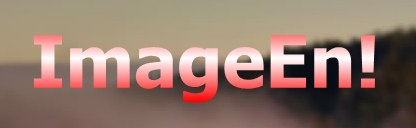

// Centered gradient text without border
aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 54;
aFont.Style := [fsBold];
aFont.Color := clRed;
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
                             'ImageEn!', aFont,
                             0, iejLeft, ielTop,
                             0, clBlack,
                             255, 255, clWhite, gpgVertCenter );
aFont.Free;

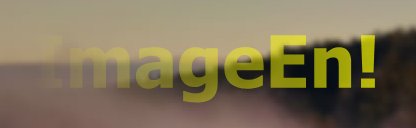

// Text with gradient ranging from 0% to 70% opacity
aFont := TFont.Create;
aFont.Name  := 'Tahoma';
aFont.Size  := 54;
aFont.Style := [fsBold];
ImageEnView1.Proc.TextOutEx( 100, 100, 0, 0,
                             'ImageEn!', aFont,
                             0, iejLeft, ielTop,
                             0, clBlack,
                             0,                        // 100% transparent
                             IEOpacityToAlphaD( 0.7 ), // 70% opacity
                             clYellow, gpgHorizontal );
aFont.Free;
