ImageEn, unit imageenview

TImageEnView.SelectRoundRect

TImageEnView.SelectRoundRect


Declaration

procedure SelectRoundRect(Left, Top, Right, Bottom, RoundWidth, RoundHeight: integer; Op: TIESelOp = iespReplace);


Description

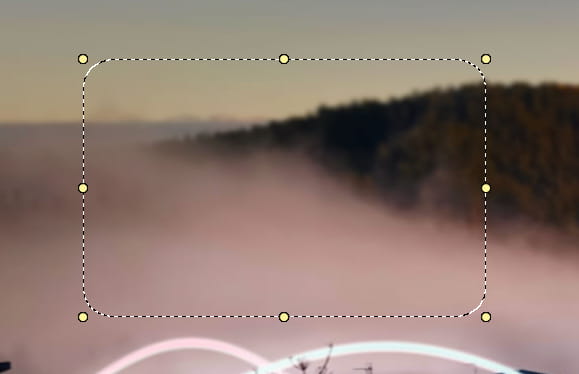

Creates a rectangular selection with rounded corners.
Left, Top, Right, Bottom are the rectangle coordinates.
RoundWidth and RoundHeight specify the size of the rounding (in pixels).
Op specifies whether to add a new selection (iespAdd) or replace the current one (iespReplace).

The style of selection are specified by:
SelColor1
SelColor2
SetSelectionGripStyle

Note:
SelectRoundRect creates a "vectorized" selection (the selection will be made up of a series of lines and can be accessed via PolySel)
You can allow your user to make a rounded rectangular selection by enabling SelectionRounding


Example

ImageEnView1.SelectRoundRect(100, 100, 250, 250, 20, 20);



Other Selection Methods

Select
SelectEllipse
SelectMagicWand
SelectChromaKey
SelectShape


See Also

InvertSelection
Deselect
