ImageEn, unit imageenproc

TImageEnProc.SetTransparentColors

TImageEnProc.SetTransparentColors


Declaration

procedure SetTransparentColors(MinColor, MaxColor: TRGB; Alpha: Integer); overload;
procedure SetTransparentColors(Color: TRGB; Tolerance: Integer; Alpha: Integer); overload;
procedure SetTransparentColors(MinColor, MaxColor: TColor; Alpha: Integer); overload;


Description

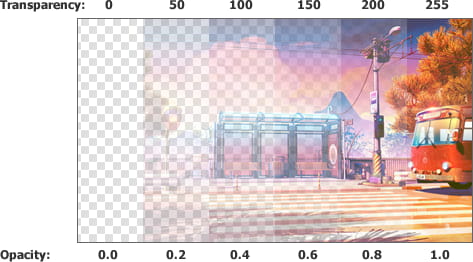

Sets all pixels within the MinColor and MaxColor range as transparent. The level of transparency is specified by Alpha (0=fully transparent, 255=fully visible).
If you have a specific transparent color, you can set MinColor and MaxColor to the same value. You can also use the second overload, to specify a transparent color and the Tolerance (0 to 255, where 0 requires an exact color match, whereas 255 would match every color) to auto-calculate the color range.



Note:
If the image PixelFormat is not one of ie24RGB, ie32RGB, ie1g, it will be converted
An AlphaChannel will be added to the image, if it does not exist
A UI for this is available to your users in the Image Processing dialog


Demos

Demo  Demos\ImageEditing\MakeTransparent\MakeTransparent.dpr
Demo  Demos\ImageEditing\EveryMethod\EveryMethod.dpr


Examples

// Specify all colors from gray (128, 128, 128) to white (255, 255, 255) as transparent
ImageEnView1.Proc.SetTransparentColors(CreateRGB(128, 128, 128), CreateRGB(255, 255, 255), 0);


// Make all colors close to white transparent
ImageEnView1.Proc.SetTransparentColors( TColor2TRGB( clWhite ), 20, 0 );


// Convert a bitmap to PNG where the bottom-left pixel represents the transparent color
bmp := TIEBitmap.Create;
bmp.LoadFromFile( 'D:\Glyph_Source.bmp');
// Get transparent color (transColor is type TRGB)
transColor := bmp.Pixels[ 0, bmp.Height - 1 ];
bmp.SetTransparentColors( transColor, transColor, 0 );
bmp.SaveToFile( 'D:\Glyph_Output.png');
bmp.Free;

Glyph_Source.bmp:
Glyph_Output.png:


// Example of drawing text with soft shadow over a background image
ImageEnView1.IO.LoadFromfile('background.jpg');  // load background image
ImageEnView1.LayersAdd();  // add a new layer
ImageEnView1.IEBitmap.Canvas.Font.Name := 'Tahoma';
ImageEnView1.IEBitmap.Canvas.Font.Height := 45;
ImageEnView1.IEBitmap.Canvas.Font.Color := clYellow;
ImageEnView1.IEBitmap.Canvas.TextOut(0, 250, 'Hello World!');  // draw text on second layer
ImageEnView1.Proc.SetTransparentColors(CreateRGB(255, 255, 255), CreateRGB(255, 255, 255), 0);  // remove the white, making it as transparent
ImageEnView1.Proc.AddSoftShadow(2, 3, 3);  // add the shadow




// Load test image
ImageEnView1.IO.LoadFromFile( 'D:\TestImage.jpg' );



// Make colors similar to white transparent
ImageEnView1.Proc.SetTransparentColors( CreateRGB(255, 255, 255), 50, 0 );




// DRAW AN IMAGE ONTO ANOTHER

// Load our background image
ImageEnView1.IO.LoadFromFile( 'D:\Test2.png' );


// Load our foreground image
ImageEnView2.IO.LoadFromFile( 'D:\Temp\Cartoonify1.png' );


// Convert white background to alpha (transparent)
ImageEnView1.Proc.SetTransparentColors( clWhite, clWhite, 0 );

// Draw foreground image onto background image
bmp.DrawToTIEBitmap( ImageEnView1.IEBitmap, 0, 0 );

// Update the ImageEnView
ImageEnView1.Update();



See Also

CastAlpha
CreateRGB
TRGB2TColor
TColor2TRGB
TIEBitmap.SetTransparentColors
