TIEBitmap.RenderToTIEBitmapEx

TIEBitmap.RenderToTIEBitmapEx


Declaration

procedure RenderToTIEBitmapEx(Dest: TIEBitmap; xDst, yDst, dxDst, dyDst: integer; xSrc, ySrc, dxSrc, dySrc: integer; bEnableAlpha: Boolean = True; Transparency: integer = 255; Filter: TResampleFilter = rfNone; RenderOperation: TIERenderOperation = ielNormal; Opacity: double = 1.0);


Description

Draws the rectangle from xSrc, ySrc and size dxSrc, dySrc inside the TIEBitmap destination rectangle at xDst, yDst and size: dxDst, dyDst of Dest.
The PixelFormat of Dest must be ie24RGB. The source image can be any PixelFormat.
If bEnableAlpha is true, then rendering will support the AlphaChannel, i.e. painting will not occur for areas of Alpha < 255.
Transparency specifies the transparency value (0=Fully Transparent to 255=Fully Opaque).
Filter the resampling filter.
RenderOperation the rendering operation.
Opacity specifies the opacity (0=Fully Transparent to 1.0=Fully Opaque).

Note: RenderToTIEBitmapEx and DrawToTIEBitmap are simplified versions of RenderToTIEBitmap


Opacity vs Transparency

Both the Opacity and Transparency parameters provide the same functionality. Transparency is the traditional ImageEn value, whereas Opacity provides easier PSD compatibility.
While they can be used in combination, generally only one will be used, i.e. leave Opacity=1 and make use of transparency, or alternatively, leave Transparency=255 and make use of Opacity. For example, for 50% opacity: Transparency = 255 and Opacity = 0.5, or Transparency = 128 and Opacity = 1.0




Examples

// Render an image in a TImageEnView to a TIEBitmap at half-size
bmp.Allocate( ImageEnView1.IEBitmap.Width div 2, ImageEnView1.IEBitmap.Height div 2 );
ImageEnView1.IEBitmap.RenderToTIEBitmapEx( bmp,
                                           0, 0, bmp.Width, bmp.Height,
                                           0, 0, ImageEnView1.IEBitmap.Width, ImageEnView1.IEBitmap.Height,
                                           True, 255, rfLanczos3 );

// Merge images of ImageEnView1 and ImageEnView2 using "InverseColorDodge" and put onto ImageEnView3
ImageEnView3.IEBitmap.Assign( ImageEnView2.IEBitmap );
ImageEnView1.IEBitmap.RenderToTIEBitmapEx( ImageEnView3.IEBitmap,
                                           0, 0, ImageEnView2.IEBitmap.Width, ImageEnView2.IEBitmap.Height,
                                           0, 0, ImageEnView1.IEBitmap.Width, ImageEnView1.IEBitmap.Height,
                                           False, 255, rfNone,
                                           ielInverseColorDodge );
ImageEnView3.Update();

// Add watermark in bottom left corner of image at 30% opacity
bmpImg := TIEBitmap.Create();
bmpWM := TIEBitmap.Create();
bmpImg.LoadFromFile('D:\image.jpeg');
bmpWM.LoadFromFile('D:\Watermark.png');
wmOpacity := 0.30;
bmpWM.RenderToTIEBitmapEx( bmpImg,
                           0, bmpImg.Height - bmpWM.Height, bmpWM.Width,  bmpWM.Height,
                           0, 0, bmpWM.Width,  bmpWM.Height,
                           True, 255, rfFastLinear, ielNormal,
                           wmOpacity );
bmpImg.SaveToFile('D:\image-marked.jpeg');
bmpImg.Free;
bmWM.Free;

// Overlay entire image with watermark at 30% opacity (maintaining aspect ratio)
bmpImg := TIEBitmap.Create();
bmpWM := TIEBitmap.Create();
bmpImg.LoadFromFile('D:\image.jpeg');
bmpWM.LoadFromFile('D:\Watermark.png');
aRect := GetImageRectWithinArea( wmBMP.Width, wmBMP.Height, bmpImg.Width, bmpImg.Height);
wmOpacity := 0.30;
bmpWM.RenderToTIEBitmapEx( bmpImg,
                           aRect.Left, aRect.Top, aRect.Right - aRect.Left, aRect.Bottom - aRect.Top,
                           0, 0, bmpWM.Width,  bmpWM.Height,
                           True, 255, rfFastLinear, ielNormal,
                           wmOpacity );
bmpImg.SaveToFile('D:\image-marked.jpeg');
bmpImg.Free;
bmWM.Free;

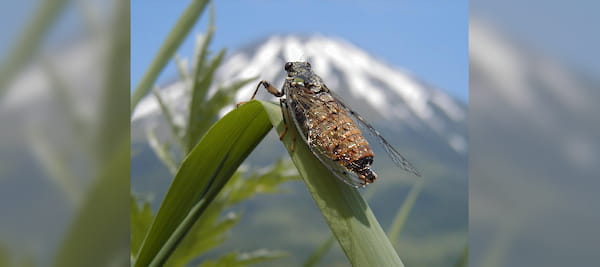

// CREATE BITMAP WITH BLURRED IMAGE FILLING NON-IMAGE AREA
// DestBmp: Output image for result
// BackgroundBmp: Image to use as background (must be valid)
// ImageBmp: Image to draw centered (can be same as BackgroundBmp, or can be NIL)
// Width, Height: Size to make DestBmp
// BlurRadius: How much to blur image (Default is 8, 0 for no blur)
// BackgroundOpacity: If less than 1.0, the background is drawn semi-opaque (with BackgroundColor visible)
procedure StretchDrawWithBlur(DestBmp, BackgroundBmp, ImageBmp: TIEBitmap; Width, Height: Integer; BlurRadius: Integer = 8; BackgroundOpacity: Double = 0.75; BackgroundColor: TColor = clBlack);
var
  aRect: TRect;
  DestRect : TIERectangle;
begin
  // Allocate and size
  if not assigned( DestBmp ) then
    DestBmp := TIEBitmap.Create();
  DestBmp.Allocate( Width, Height );

  // Fill background color if needed
  if BackgroundOpacity < 1.0 then
    DestBmp.Fill( BackgroundColor );

  // Scale draw the background to fill entire image area
  aRect := GetImageRectWithinArea( BackgroundBmp.Width, BackgroundBmp.Height, DestBmp.Width, DestBmp.Height,
                                   0, 0, True, True, True, True, 0,
                                   _fmFillRect_WithOverlap );
  DestRect := IERectangle( aRect );
  BackgroundBmp.RenderToTIEBitmapEx( DestBmp, DestRect.X, DestRect.Y, DestRect.Width, DestRect.Height,
                                     0, 0, BackgroundBmp.Width, BackgroundBmp.Height,
                                     True, 255, rfNone, ielNormal, BackgroundOpacity );

  // Blur the background
  if BlurRadius > 0 then
    with TImageEnProc.CreateFromBitmap( DestBmp ) do
    begin
      Blur( BlurRadius );
      Free();
    end;

  // Draw our image
  if ImageBmp <> nil then
  begin
    aRect := GetImageRectWithinArea( ImageBmp.Width, ImageBmp.Height, DestBmp.Width, DestBmp.Height );
    DestRect := IERectangle( aRect );
    ImageBmp.RenderToTIEBitmapEx( DestBmp, DestRect.X, DestRect.Y, DestRect.Width, DestRect.Height,
                                  0, 0, ImageBmp.Width, ImageBmp.Height,
                                  True, 255, rfNone, ielNormal, 1.0 );
  end;
end;

// TEST METHOD
procedure TImageEnViewForm.Button1Click(Sender: TObject);
var
  bmpIn, bmpOut: TIEBitmap;
begin
  bmpIn := TIEBitmap.Create();
  bmpOut := TIEBitmap.Create();
  try
    bmpIn.LoadFromFile( 'D:\image.jpeg' );
    StretchDrawWithBlur( bmpOut, bmpIn, bmpIn, 900, 400, 8, 0.75, clGray );

    ImageEnView1.Assign( bmpOut );
  finally
    bmpIn.Free;
    bmpOut.Free;
  end;
end;





TIEBitmap Assignment and Drawing Methods

TIEBitmap Methods
Method Mode Purpose
Assign From TIEBitmap/TBitmap/TGraphic/TIcon Copy whole image
AssignImage From TIEBitmap Like assign, but does not copy the alpha channel
AssignRect From TIEBitmap/TBitmap Copy a specified rect
CopyAndConvertFormat From TIEBitmap Copy whole image
CopyRectTo To TIEBitmap Copy rect to another image (without scaling)
CopyWithMask1 To TIEBitmap Copy image using a mask to specify what is copied from the source
CopyWithMask2 To TIEBitmap Copy image using a mask to specify what is replaced in the destintation
DrawToTIEBitmap To TIEBitmap Copies all or part of the image to a specified position and/or size
JoinBitmaps From two TIEBitmaps Draws two bitmaps to a single bitmap
MergeAlphaRectTo With TIEBitmap Merges the alpha channels of two TIEBitmaps using merge rules
MergeWithAlpha With TIEBitmap Merges all or part of two TIEBitmaps with alpha channels to a specified position
RenderToTIEBitmapEx To TIEBitmap Extended drawing of content to a TIEBitmap
StretchRectTo To TIEBitmap Copy rect to dest rect in another image (with scaling)
SwitchTo To TIEBitmap Move content from one TIEBitmap to another

TBitmap Methods
Method Mode Purpose
Assign From TIEBitmap/TBitmap/TGraphic/TIcon Copy whole image
AssignTo To TIEBitmap/TBitmap Copy whole image with optional scaling
AssignRect From TIEBitmap/TBitmap Copy a specified rect
CopyFromTBitmap From TBitmap Copy whole image
CopyToTBitmap To TBitmap Copy whole image
RenderToTBitmapEx To TBitmap Extended drawing of content to a TBitmap

TCanvas Methods
Method Mode Purpose
DrawToCanvas To TCanvas Copies whole image to canvas at specified position (ignoring the alpha channel)
DrawToCanvasWithAlpha To TCanvas Copies whole image to canvas at specified position (honoring the alpha channel)
RenderToCanvas To TCanvas Extended drawing of content to a TCanvas (ignoring the alpha channel)
RenderToCanvasWithAlpha To TCanvas Extended drawing of content to a TCanvas (honoring the alpha channel)


Compatibility Information

In v6.0.0 the bEnableAlpha parameter was added. Set this to true to maintain existing functionality.


See Also

RenderToTIEBitmap
DrawToTIEBitmap
