ImageEn

Components and Hierarchy


Visual Components

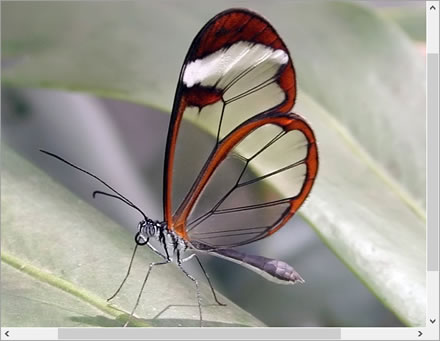

TImageEnView Display images and videos (with layer support)
TIEEditControls Allow users to apply editing and visual effects to an image
TImageEnViewToolbar Toolbar with buttons for TImageEnView
TImageEnMView Display multiple images or thumbnails
TImageEnFolderMView Display thumbnails of files in a folder
TImageEnLayerMView Display thumbnails of layers within an image
TIELayerProps Display properties of a layer
TIEMetaListView Display meta-data and file properties for an image
TIEFolderTree Windows Folder Tree control
TIEFileListBox Filename List Box
TIEColorCurve Manipulate colors of an image using a color curve
TIERichEdit Advanced Rich Editing component
TIERichEditToolbar Toolbar with buttons for TIERichEdit
THistogramBox Color and hue histogram control
TIEColorPalette Color display and selection control
TIEGradientBar Color gradient display and selection control
THSVBox Hue-Saturation-Value display and selection control


Non-Visual Components

TImageEnProc Analyze and edit images. Generally you will not create this component yourself, but access via TImageEnView.Proc
TImageEnIO Load and save images of all formats, print, acquire from scanner, camera or digital device. Generally you will not use create this component yourself, but access via TImageEnView.IO
TImageEnMIO Load and save images of all multi-page formats, print thumbnails, acquire images from scanner, camera or digital device. Generally you will not create this component yourself, but access via TImageEnMView.MIO
TOpenImageEnDialog Open dialog with preview of all image formats
TSaveImageEnDialog Save dialog with preview of image properties

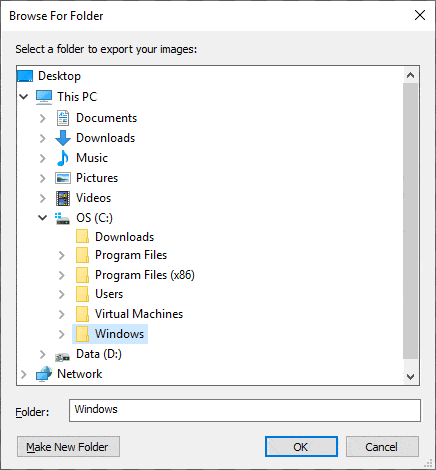

TIEOpenFolderDialog Folder selection dialog

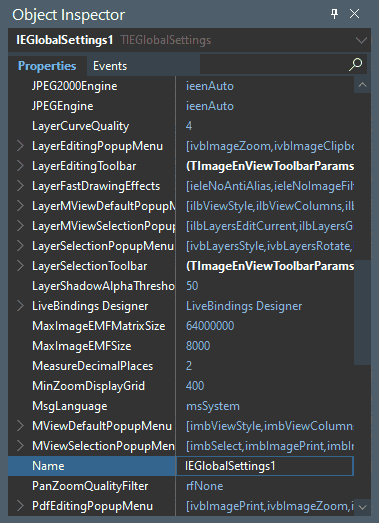

TIEGlobalSettings ImageEn shared settings
TIEFileDragDrop Windows Drag/Drop Handler
TIEFolderWatch Folder monitoring control


Key Classes

TIEBitmap ImageEn's bitmap class, supporting all images formats and advanced functionality
TIOParams Provides access to the properties and meta-data of image files. You will not create this class directly, but via TImageEnView.IO.Params or TIEBitmap.Params
TIEDBBitmap Access to an image stored or referenced in a database (connect to a TImageEnView for display)
TIEMultiBitmap Loading, editing and saving of multi-frame image formats, such as TIFF, GIF, etc.
TIOMultiParams Provides access to the properties and meta-data of multi-frame image files. You will not create this class directly, but via TImageEnMView.MIO.Params or TIEBitmap.Params
TIEDBMultiBitmap Access to the images stored or referenced in a database (connect to a TImageEnMView to display as thumbnails)
TIECanvas A GDI+ canvas that supports anti-aliasing, alpha merging, and advanced drawing methods. It is available via TIEBitmap.IECanvas
TIEAcquireParams Access to scanners, camera and digital devices available via Twain, WIA or WPD. You will not create this class directly, but via TImageEnMView.MIO.AcquireParams or TImageEnView.IO.AcquireParams
TIEVisionLibrary Advanced features add-on class for ImageEn: OCR, barcode reading, facial detection and recognition, etc.
TIEGoogleVision Use the Google Vision web service to recognize objects, text, handwriting, faces, famous landmarks and logos in images


Legacy Components

TImageEnVect Display and edit vector images. For new applications you should use vector layers. To learn more about transitioning your code to TIELayers, see: TImageEnVect vs TIELayers
TImageEnDBView Display image from a database. For new applications you should use TIEDBBitmap



Component Hierarchy

 TObject
  TIEBaseBitmap
     TIEBitmap
     TIEDBBitmap
     TIEDibBitmap
  TIECustomMultiBitmap
     TIEMultiBitmap
     TIEDBMultiBitmap
  TIEDICOMTags
  TIEDirectShow
  TIEICC
  TIEImagingAnnot
  TIEImagingObject
  TIEIPTCInfoList
  TIEList
     TIEIntegerList
     TIEDoubleList
  TIEMarkerList
  TIEMask
  TIEMediaFoundationSourceReader
  TIEMediaReader
  TIEMouseWheelParams
  TIEPortableDevices
  TIEScrollBarParams
  TIETagsHandler
  TIETIFFHandler
  TIETIFTagsReader
  TIEUserInteraction
     TIEBrushToolInteraction
     TIECloneToolInteraction
     TIECropToolInteraction
     TIEFillToolInteraction
     TIELayerCreateInteraction
     TIELayerPointsInteraction
     TIEPdfViewer
     TIERetouchToolInteraction
     TIERotateToolInteraction
     TIETransformToolInteraction
  TIEWia
  TIEWICReader
  TIEWICWriter
  TComponent
     TImageEnIO (encapsulates TIEDirectShow, TIEWia, TIEMediaFoundationSourceReader)
     TImageEnMIO
     TImageEnProc
     TIECommonDialog
        TOpenImageEnDialog
           TSaveImageEnDialog
     TIEOpenFolderDialog
     TIEFileDragDrop
     TIEFolderWatch
     TWinControl
           TIELayerProps
           TIEEditControls
           TCustomControl
              TIEColorButton
              TIEColorCurve
              TIEColorPalette
              TIEGradientBar
              THistogramBox
              THSVBox
              TRulerBox
              TIEView
                 TImageEnView (encapsulates TImageEnIO, TImageEnProc)
                    TImageEnVect
                 TIECustomMView
                    TImageEnMView (encapsulates TImageEnMIO, TImageEnProc)
                       TImageEnFolderMView
                    TImageEnLayerMView
              TCustomListBox
                 TIEFileListBox
              TCustomListView
                 TIEMetaListView
              TCustomTreeView
                 TIEFolderTree
              TForm
                 TImageEnPaletteDialog

 IInterface
  TIEVisionBase
     TIEVisionBackgroundSubtractor
     TIEVisionBarCodeScanner
     TIEVisionBarCodeSymbol
     TIEVisionBaseVector
     TIEVisionBlobDetector
     TIEVisionCascadeClassifier
     TIEVisionCascadeClassifierTrainer
     TIEVisionDrawing
     TIEVisionFaceRecognizer
     TIEVisionGrabCut
     TIEVisionHistogram
     TIEVisionImage
     TIEVisionImageList
     TIEVisionLibrary
     TIEVisionMath
     TIEVisionObjectsFinder
     TIEVisionObjectTracker
     TIEVisionOCR
     TIEVisionOCRWordBox
     TIEVisionPeopleDetector
     TIEVisionStitcher
     TIEVisionString
     TIEVisionWatershed
     TIEVisionWString
     TIEVisionNNetBase
        TIEVisionNNet
        TIEVisionNNetSuperRes



Dialogs

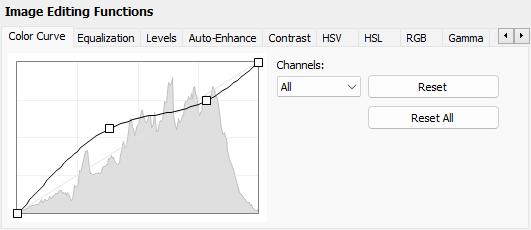

Image and Color Effects

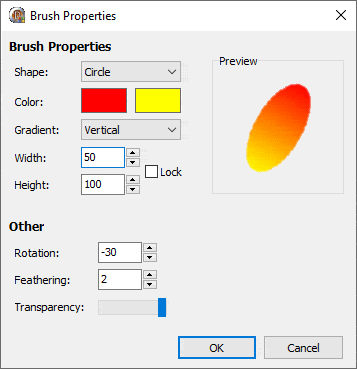

Brush Properties

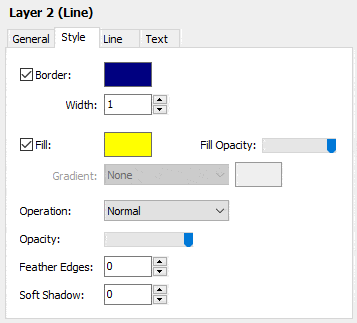

Layer Properties

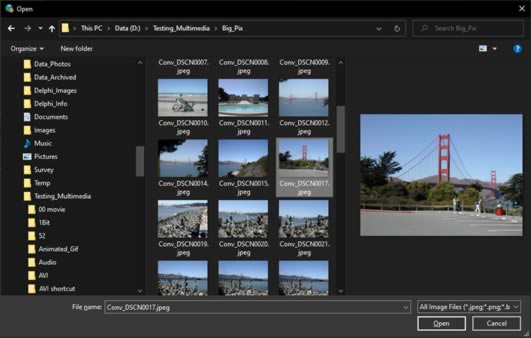

Open/Save Dialogs

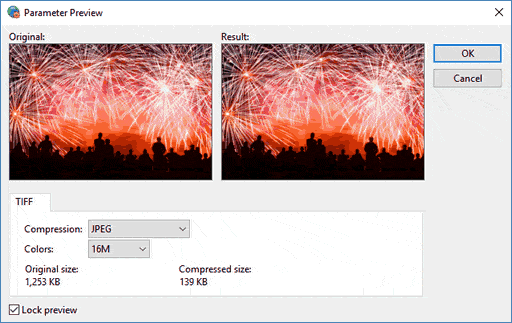

Save Properties Dialog




Print Preview Dialog

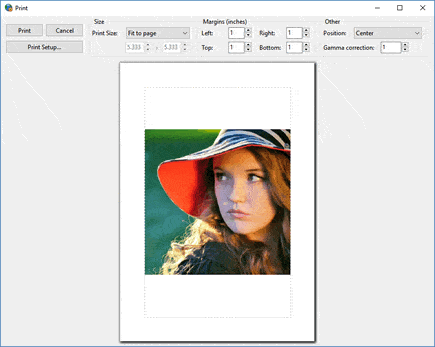

Print Preview Maxi Dialog




Thumbnail Print Preview Dialog

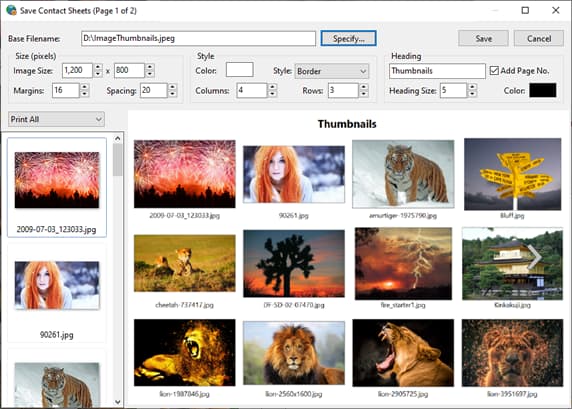

Thumbsheets Save Preview Dialog




Image Acquisition Source

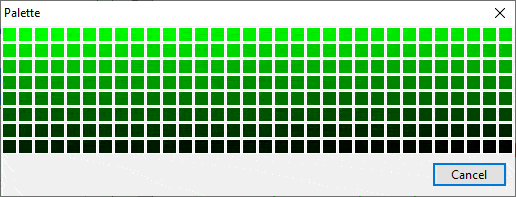

Color Palette Dialog
